    Laser Cutting Machine

    Our fiber laser cutting machine deliver high speed and high precision metal cutting for stainless steel, carbon steel and aluminum sheets across industrial applications.

    Laser Cutting Machine

    Single Table Laser Cutting Machine

    A single table laser cutting machine is a practical choice for workshops that need flexible sheet cutting without the higher cost or floor space of an exchange-table system. It is often suitable for first laser buyers, lower-to-medium production volume, and shops replacing outsourced cutting.

    Main Features:

    1. It has excellent beam quality and is suitable for high-speed, high-precision cutting.
    2. Its compact size enables higher integration.
    3. The laser output power is stable and the equipment reliability is high.
    4. It has high efficiency, low energy consumption, and saves operating costs. It also has good dynamic characteristics and high working efficiency.

    Inquire Now

    Share:

    Detailed Description

    Configuration Details

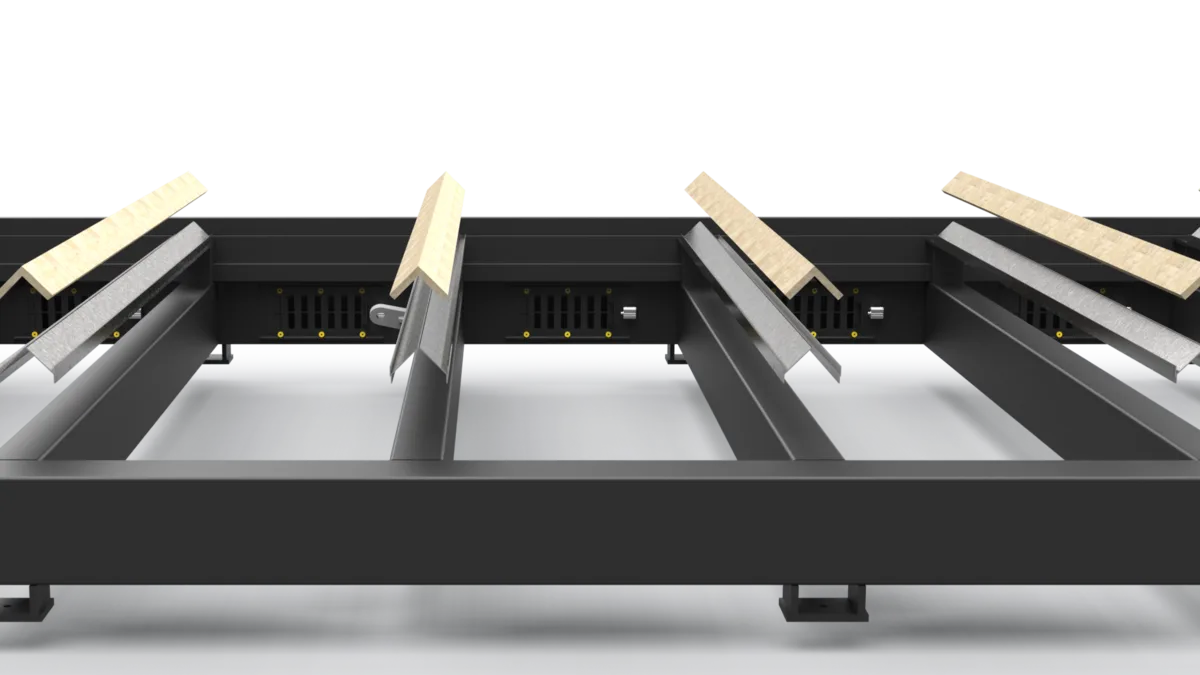

    Single table laser cutting machine mechanical bed

    Mechanical Bed

    The mechanical bed is built with a welded steel structure designed for long-term cutting stability. Rectangular tube sections and internal reinforcement improve overall strength, tensile resistance, and vibration control during high-speed laser cutting.

    The bed can be processed with high-temperature annealing, shot blasting, and stress relief treatment to reduce internal stress and prevent deformation. A stable bed structure helps maintain cutting accuracy over long service periods, especially when processing large-format plates.

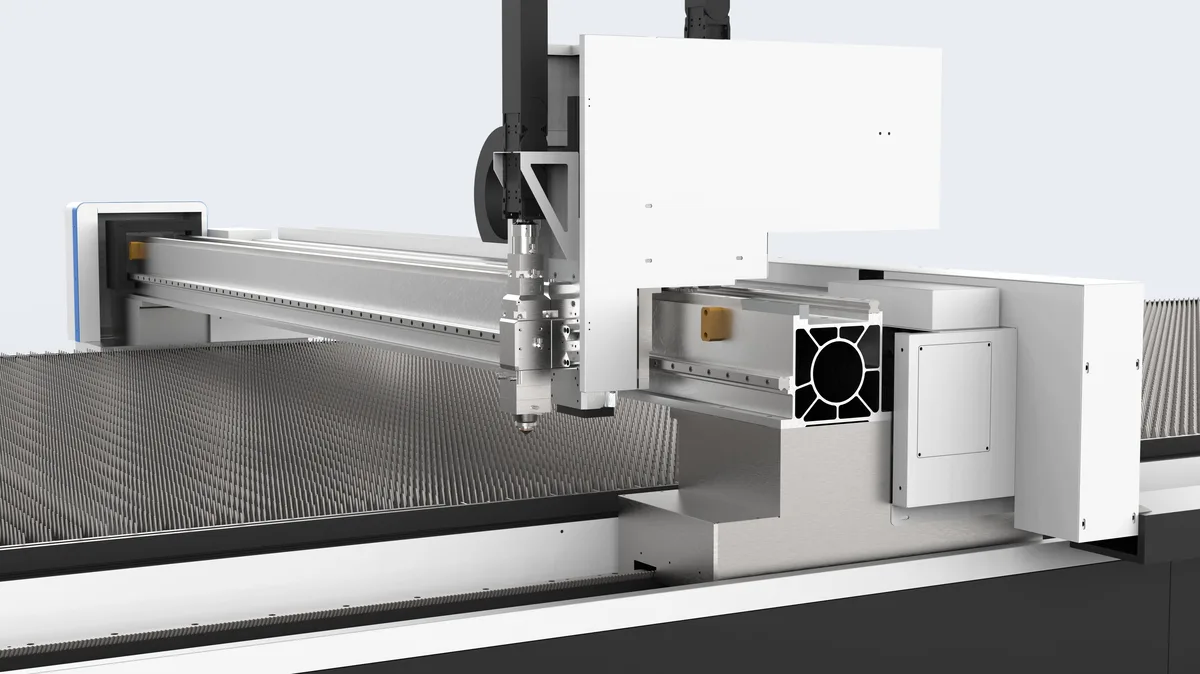

    Single table laser cutting machine beam

    Beam

    The beam is designed to balance rigidity and lightweight movement. A well-optimized beam structure helps reduce inertia while keeping enough stiffness for high-speed cutting and accurate positioning.

    Finite element analysis can be used to improve dynamic performance, acceleration response, and motion stability. This supports faster cutting cycles while maintaining smooth movement and consistent cutting quality.

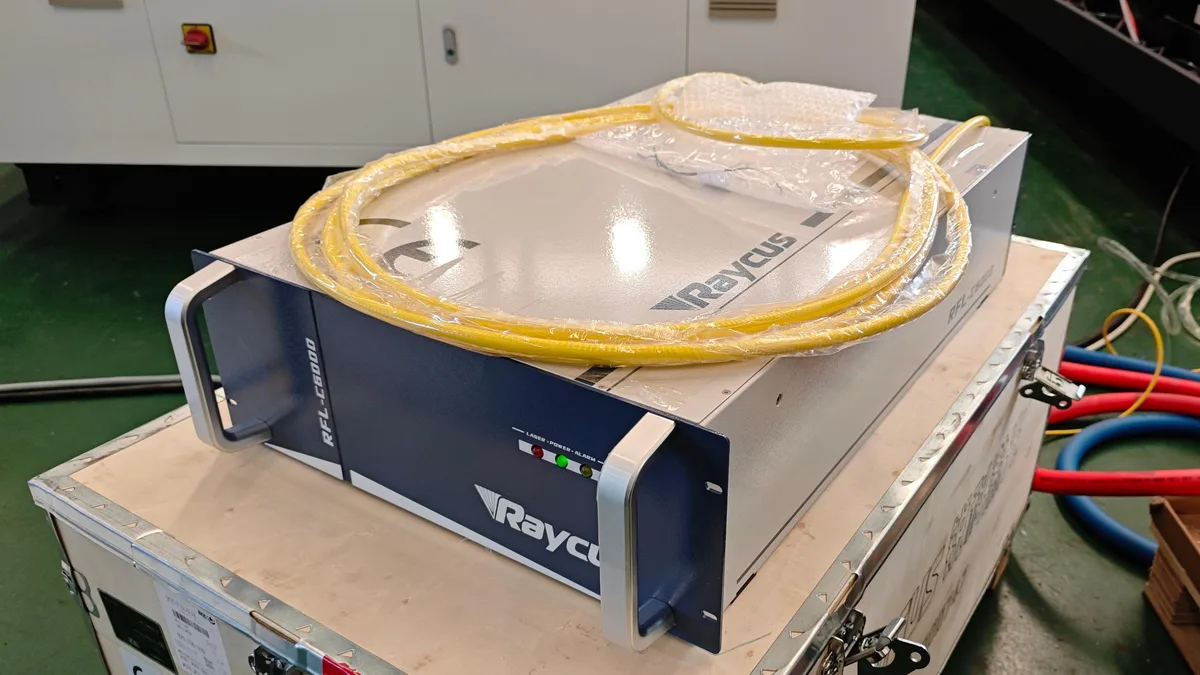

    Single table laser cutting machine laser source

    Laser Source

    The fiber laser source is the core cutting energy system of the machine. Different power levels can be selected according to material type, plate thickness, cutting speed, and production requirements.

    High-quality fiber laser sources provide stable beam quality, high electro-optical conversion efficiency, compact structure, and convenient installation. A reliable laser source improves cutting speed, edge quality, and long-term production stability.

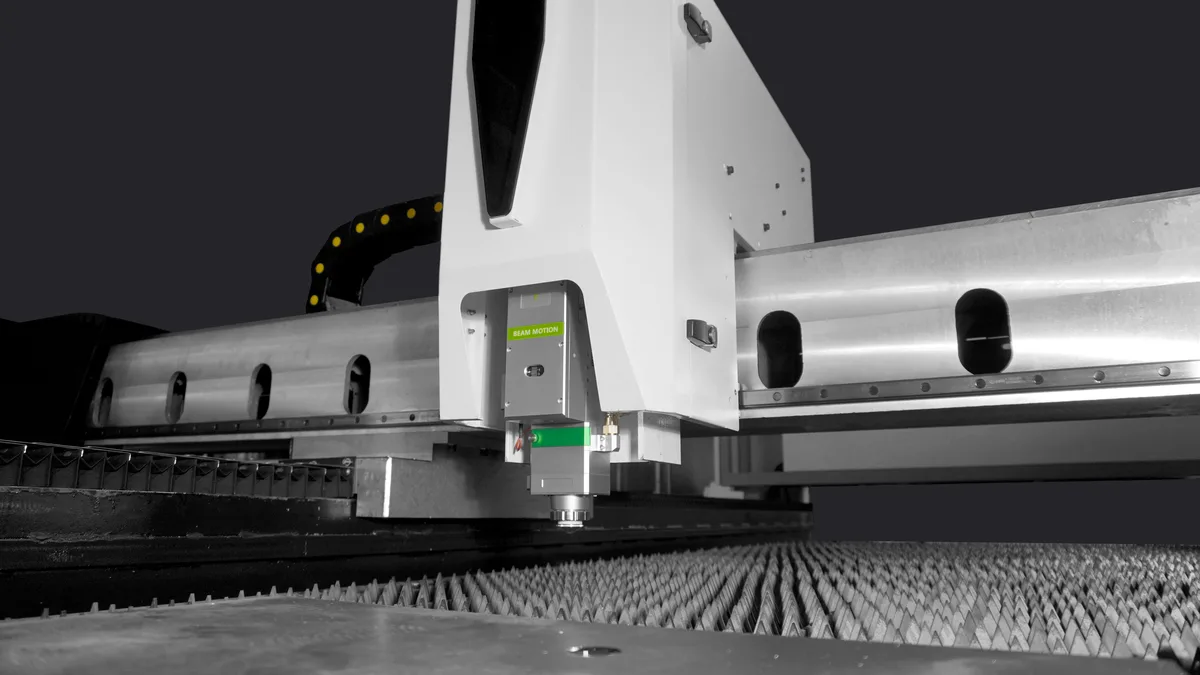

    Single table laser cutting machine cutting head

    Cutting Head

    The auto-focusing cutting head adjusts the focus position according to material thickness and cutting process requirements. This helps reduce manual adjustment time and improves cutting quality across different plate thicknesses.

    Anti-collision protection and stable optical-path design help protect the cutting head during high-speed operation. A suitable cutting head supports smooth piercing, stable kerf quality, and reliable continuous cutting.

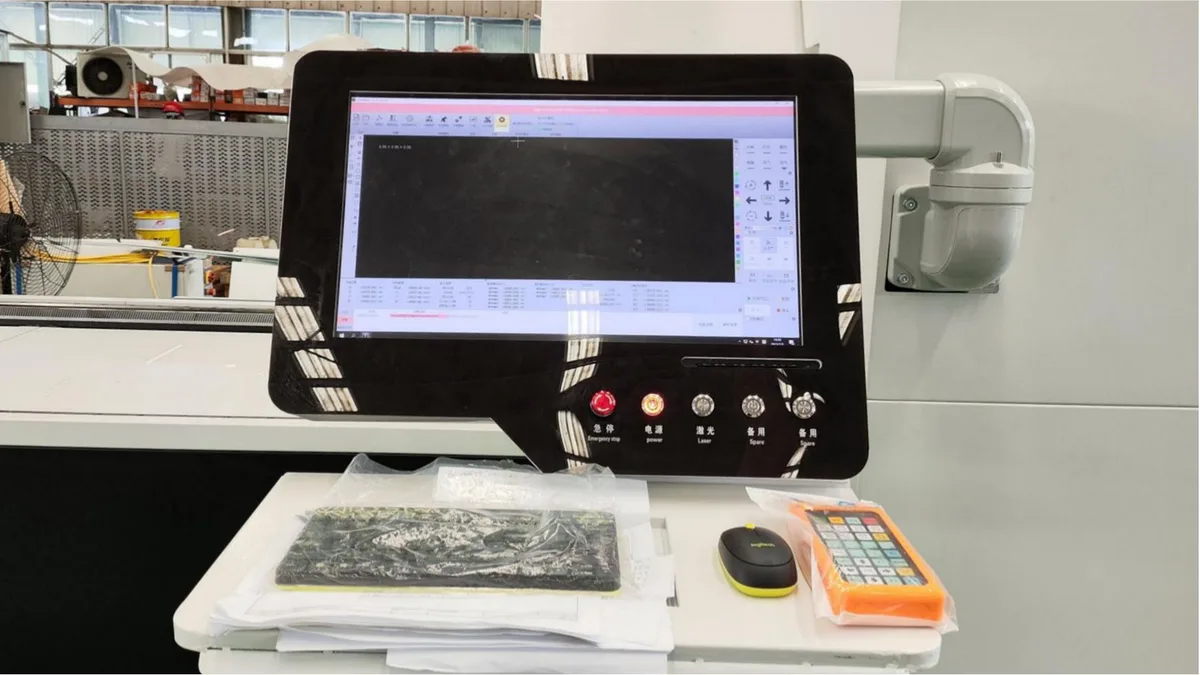

    Single table laser cutting machine control system

    Control System

    The control system manages cutting paths, nesting files, motion control, piercing parameters, gas control, and process databases. It helps operators set cutting parameters quickly for different materials and thicknesses.

    Professional fiber laser cutting software can support speed adjustment by power, cutting-process libraries, linear speed settings, and smooth motion control. A stable control system improves cutting efficiency and reduces debugging time.

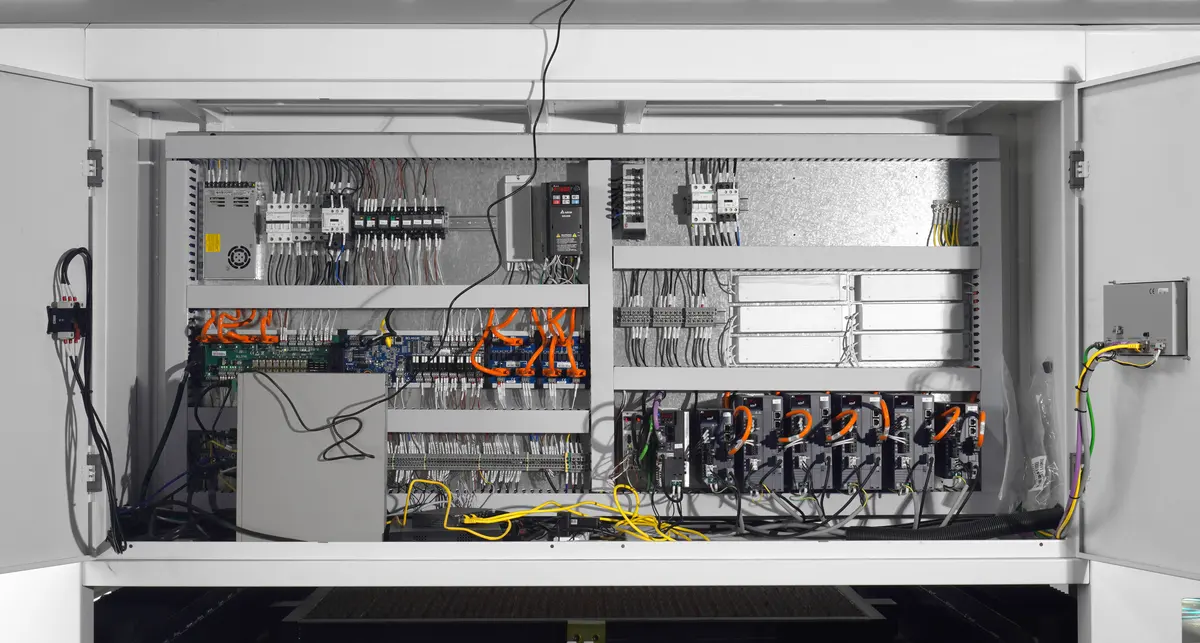

    Single table laser cutting machine electrical system

    Electrical System

    The electrical system integrates the CNC controller, servo drives, power supply modules, relays, circuit protection components, signal terminals, and cabinet cooling devices in a structured layout. A clean electrical cabinet design helps reduce interference, improve heat dissipation, and make daily inspection or maintenance more efficient.

    For a fiber laser cutting machine, stable electrical control is directly related to cutting path accuracy, servo response, laser output coordination, gas control, safety interlock, and continuous production reliability. Proper wiring, reliable grounding, and protected electrical components help the machine maintain stable performance during high-speed cutting and long working shifts.

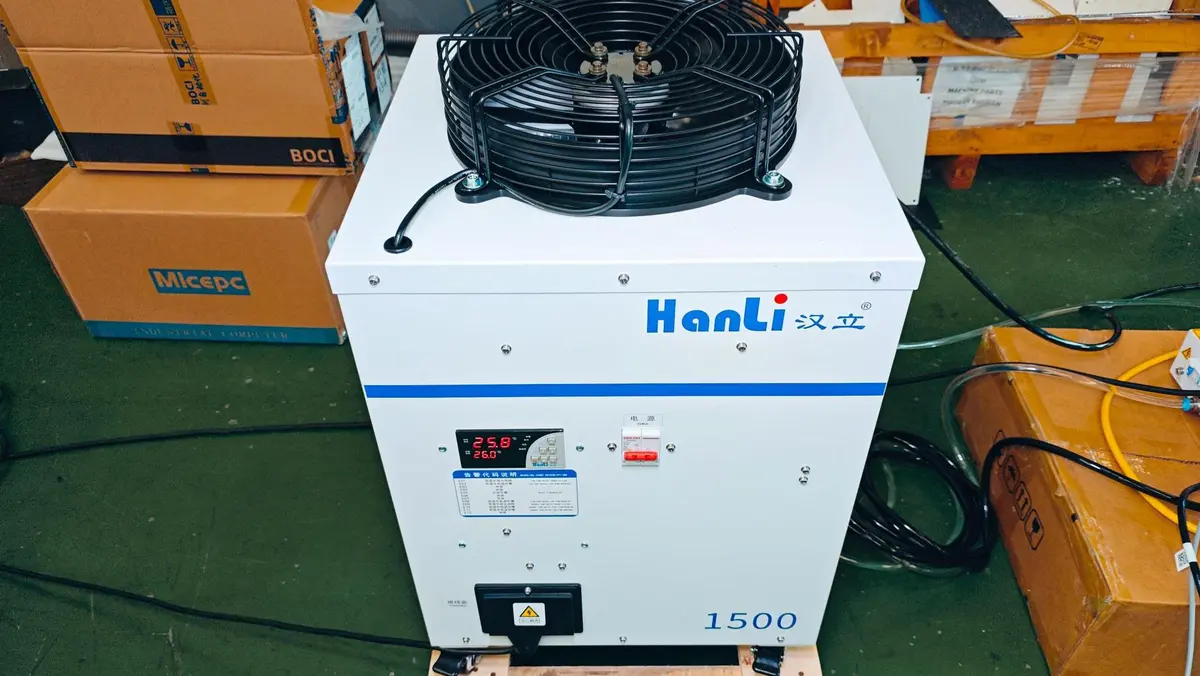

    Single table laser cutting machine water chiller

    Water Chiller

    The water chiller controls the temperature of the laser source and optical components. Stable cooling protects the laser system and helps maintain consistent output during continuous cutting.

    Protection functions such as over-temperature alarm, flow protection, and water-level monitoring improve equipment safety. A correctly matched chiller is essential for stable laser power and long-term cutting reliability.

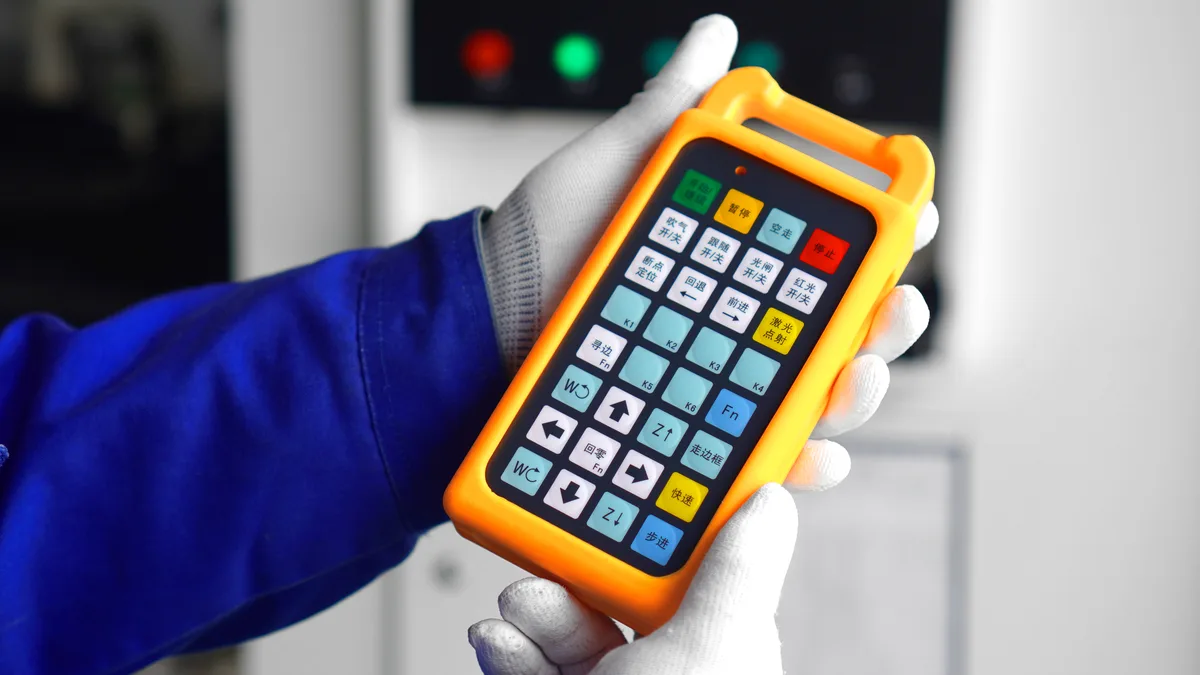

    Single table laser cutting machine remote controller

    Remote Controller

    The handheld remote controller allows the operator to control key laser cutting machine movements and auxiliary functions from a convenient working position. Common functions can include axis jogging, edge finding, return operation, frame walking, laser emission confirmation, speed adjustment, and auxiliary gas or light control depending on the final machine configuration.

    This remote control improves setup efficiency during plate loading, nozzle alignment, edge finding, and test cutting. It helps the operator stay close to the cutting area while keeping machine movement under direct control, making daily operation more flexible, safer, and easier to manage.

    Model Parameter Table

    Model Cutting Range Laser & Motion Accuracy
    3015 Cutting Range: 3000 × 1500 mm Laser Power: ≤12000 W
    Max. Positioning Acceleration: 10 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    4015 Cutting Range: 4000 × 1500 mm Laser Power: ≤12000 W
    Max. Positioning Acceleration: 10 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    4020 Cutting Range: 4000 × 2000 mm Laser Power: ≤12000 W
    Max. Positioning Acceleration: 10 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    6020 Cutting Range: 6000 × 2000 mm Laser Power: ≤60000 W
    Max. Positioning Acceleration: 10 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    6025 Cutting Range: 6000 × 2500 mm Laser Power: ≤60000 W
    Max. Positioning Acceleration: 10 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    8025 Cutting Range: 8000 × 2500 mm Laser Power: ≤60000 W
    Max. Positioning Acceleration: 10 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    10025 Cutting Range: 10000 × 2500 mm Laser Power: ≤60000 W
    Max. Positioning Acceleration: 10 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    12025 Cutting Range: 12000 × 2500 mm Laser Power: ≤60000 W
    Max. Positioning Acceleration: 10 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    13031 Cutting Range: 13000 × 3100 mm Laser Power: ≤60000 W
    Max. Positioning Acceleration: 8 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    15031 Cutting Range: 15000 × 3100 mm Laser Power: ≤60000 W
    Max. Positioning Acceleration: 8 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    20035 Cutting Range: 20000 × 3500 mm Laser Power: ≤60000 W
    Max. Positioning Acceleration: 6 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    24040 Cutting Range: 24000 × 4000 mm Laser Power: ≤60000 W
    Max. Positioning Acceleration: 6 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm
    25038 Cutting Range: 25000 × 3800 mm Laser Power: ≤60000 W
    Max. Positioning Acceleration: 6 m/s2    		 Positioning Accuracy: ±0.02 mm/m
    Reposition Accuracy: ±0.03 mm

    Parameters are subject to change without prior notice. Final laser power, cutting head, control system, chiller, voltage, dust extraction, and quotation data should be confirmed according to the actual order.

    Related PREF Group Pages

    FAQs

    • What information should I send before choosing a Single Table Laser Cutting Machine?

      Send material type, thickness range, part drawings, required tolerance, daily output target, workshop layout, voltage requirement, and any existing process photos or videos. PREF Group can use this information to recommend a practical configuration.
    • Can PREF Group customize the Single Table Laser Cutting Machine?

      Yes. The final machine can be discussed according to working size, capacity, controller preference, safety system, tooling, automation, voltage, and shipping requirements.
    • Are the listed parameters final order specifications?

      The parameter tables are used for model selection and comparison. Final order specifications should be confirmed with PREF Group before quotation, production, or publishing a final datasheet.
    • How do I know if this product is the right machine category?

      Start from the part drawing and the production bottleneck. If the main issue is bending, cutting, welding, grooving, punching, or spare parts compatibility, PREF Group can compare the related product category and recommend the better fit.
