Ground-Rail Laser Cutting Machine

A ground rail laser cutting machine is used for large-format plates, oversized workpieces, and heavy material cutting where a standard enclosed table may not provide enough working area or loading flexibility.

Main Features

Suitable for heavy plate fabrication, construction machinery, shipyard parts.
Key configuration checks include rail length, cutting width, laser power.
Available selection focus: large-format ground rail laser and heavy plate ground rail laser.
Final model, voltage, controller, safety system, and options can be confirmed by PREF Group according to the buyer drawings.

Configuration Details

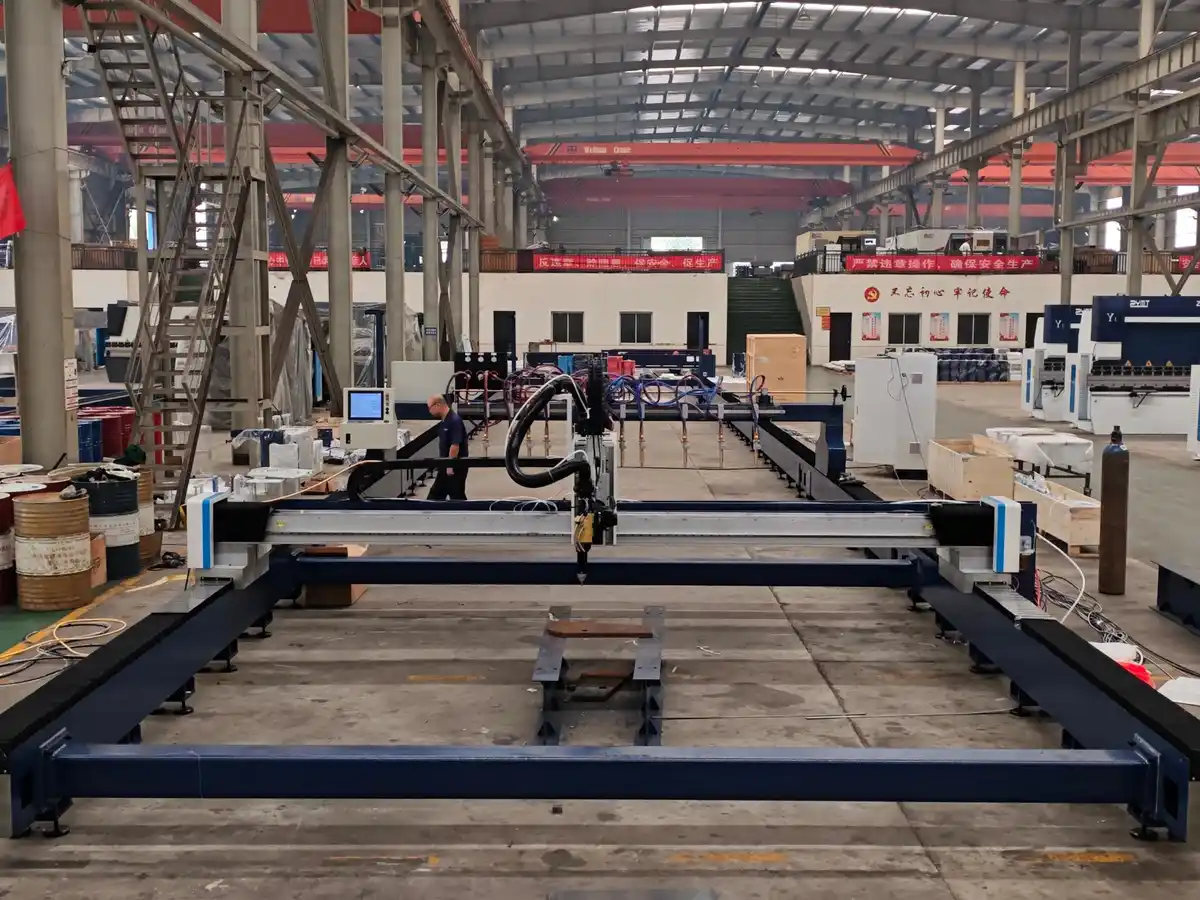

Mechanical Bed

The Ground-Rail Laser Cutting Machine uses a heavy welded steel structure designed for large-format plate cutting. A strong ground-rail layout helps support oversized workpieces, high loading capacity, and stable movement over a long cutting range.

The frame can be treated with high-temperature annealing, high-speed shot blasting, and stress-relief processing. These steps reduce internal stress and help prevent long-term deformation, which is critical for large cutting areas and heavy plate processing.

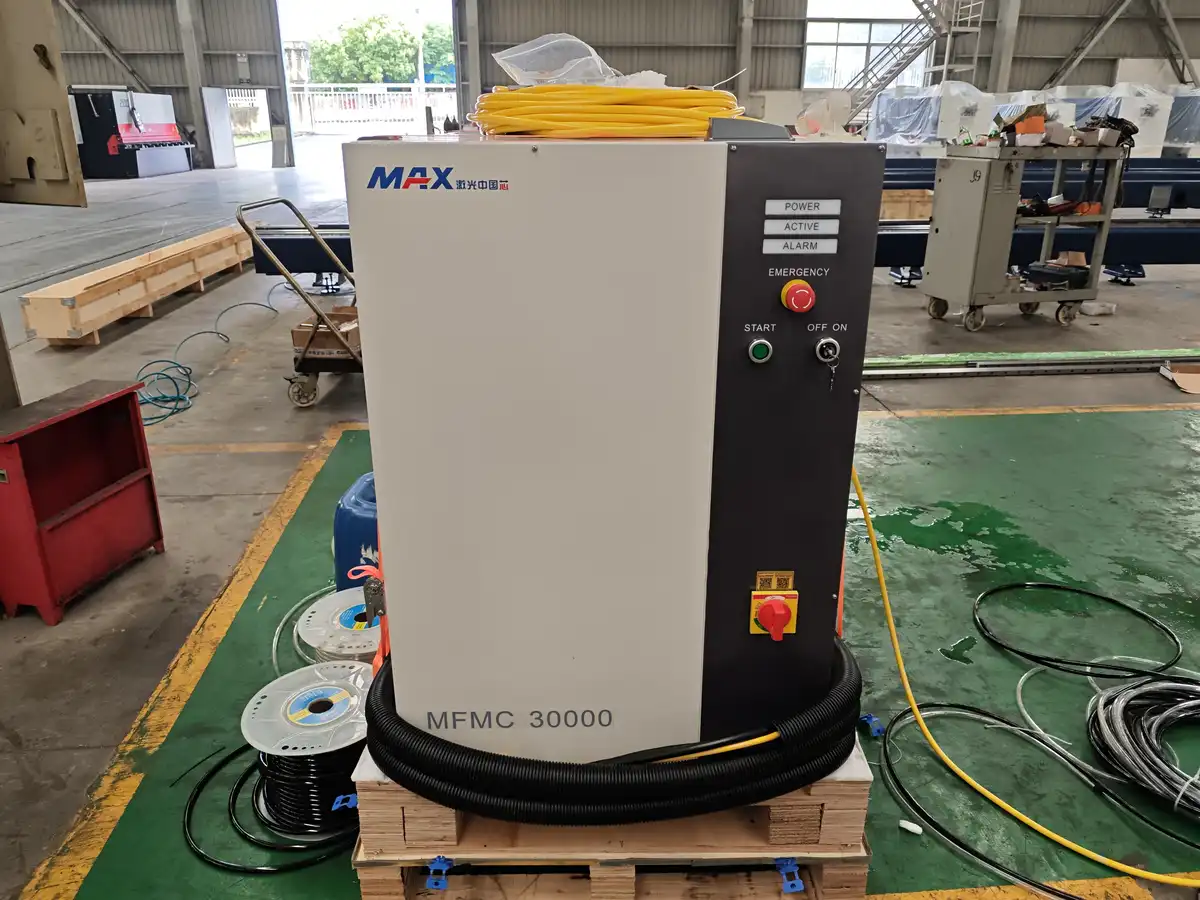

Laser Source

The fiber laser source provides stable cutting energy for medium and thick plate processing. Laser power options such as 12 kW, 15 kW, 20 kW, and 30 kW can be selected according to material thickness, cutting speed, and edge quality requirements.

High-quality fiber laser sources offer stable beam quality, high electro-optical conversion efficiency, compact structure, and convenient installation. A reliable source improves piercing performance, cutting speed, and continuous production stability.

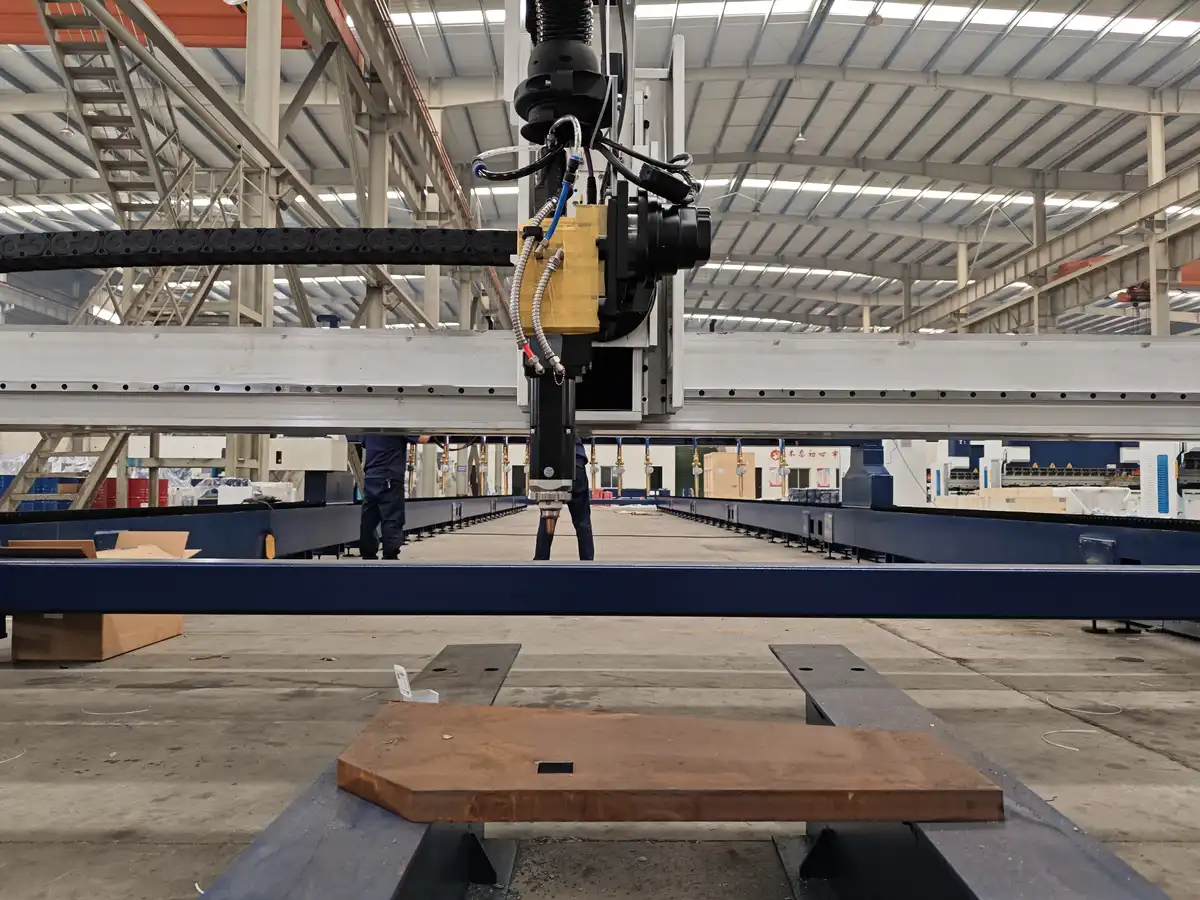

Cutting Head

The auto-focusing cutting head adjusts the focal position according to plate thickness and cutting process requirements. This reduces manual adjustment time and improves cutting quality across different material thicknesses.

Anti-collision protection and stable optical design help protect the cutting head during heavy-duty cutting operation. Proper focus control improves piercing, kerf quality, slag control, and cutting consistency.

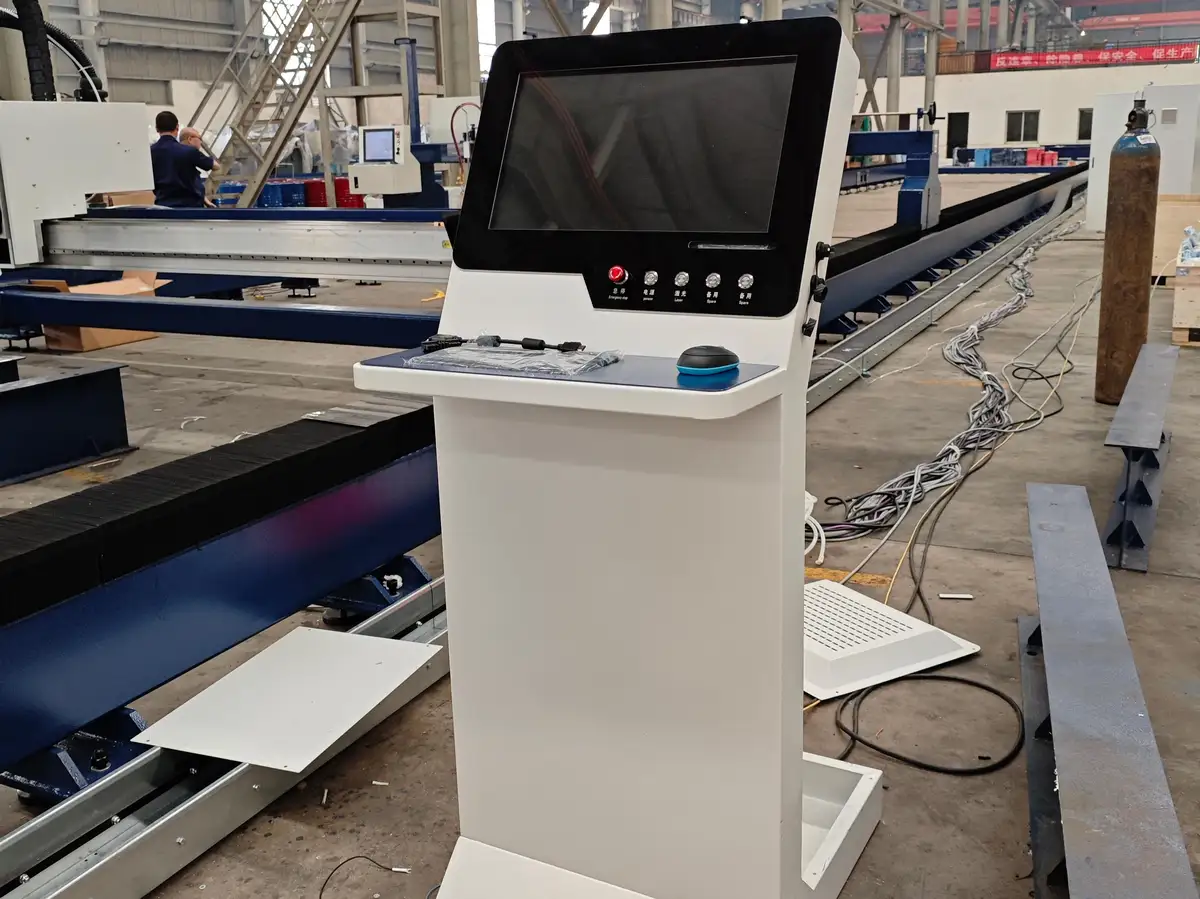

Control System

The control system manages cutting paths, nesting files, speed control, gas control, piercing parameters, and process databases. It helps operators prepare large-format cutting jobs efficiently while maintaining stable motion control.

Professional fiber laser cutting software supports power-based speed adjustment, separate linear speed settings, and cutting process data management. This improves cutting flexibility for large plates and thick plate applications.

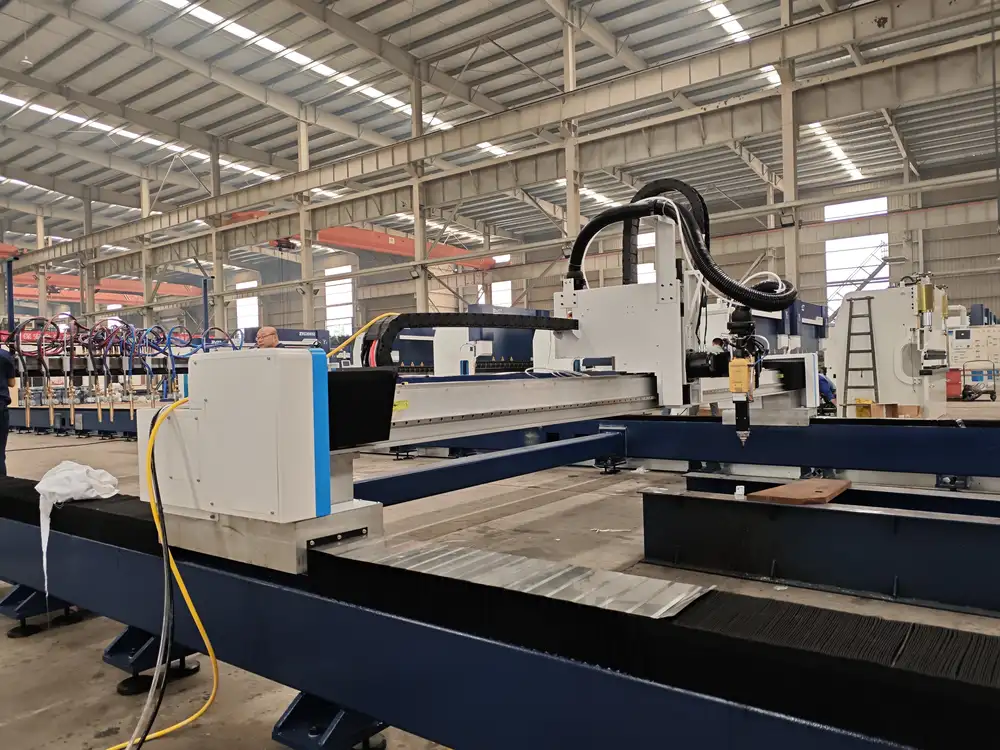

Beam

The beam is designed to combine high rigidity, lightweight movement, and stable dynamic performance. Finite element analysis can be used to optimize the structure for fast acceleration and accurate positioning.

A strong beam structure helps reduce vibration during high-speed cutting and supports consistent cutting quality across the full working area. Heat treatment improves rigidity and long-term stability, helping the beam resist deformation during extended use.

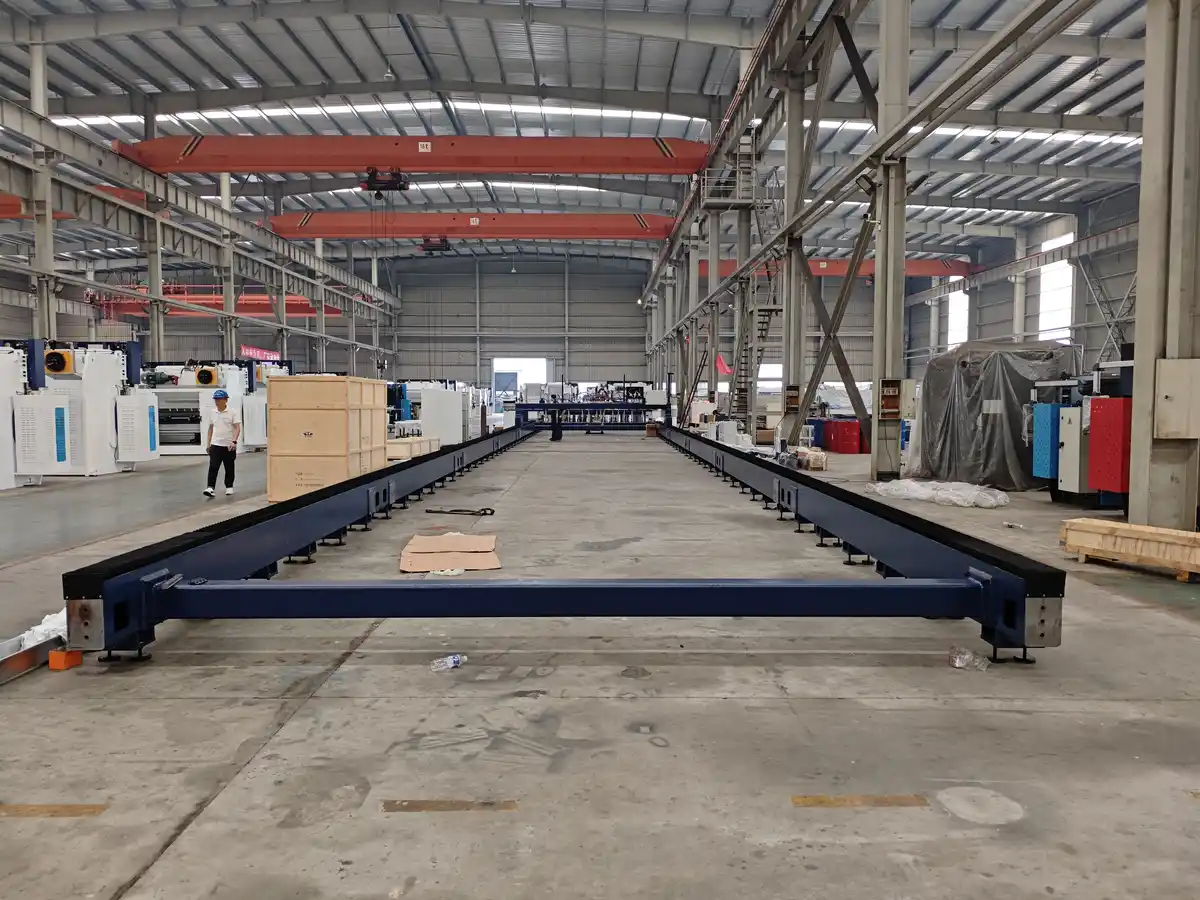

Customizable Size

The processing size can be customized according to the customer’s factory layout, material specifications, and production requirements. This makes the machine suitable for oversized plates, special workpiece sizes, and industry-specific cutting tasks.

Before confirming the final configuration, cutting range, loading capacity, laser power, foundation conditions, and workshop space should be checked together to ensure the machine matches the actual production plan.

Model Parameter Table

Model	Laser & Cutting	Motion Performance	Accuracy & Load
Customizable	Laser Power: 12 kW / 15 kW / 20 kW / 30 kW Cutting Range: Customizable Minimum Line Width: 0.1 mm	Cutting Speed: 0.1-0.6 m/min Maximum Acceleration: 1.2g	Max Loading Capacity: 5000 kg Positioning Accuracy: ±0.05 mm Repeated Positioning Accuracy: ±0.02 mm

Parameters are subject to change without prior notice. Final cutting range, laser power, loading capacity, cutting head, control system, safety protection, foundation layout, and quotation data should be confirmed according to the actual order.

Related PREF Group Pages

FAQs

What information should I send before choosing a Ground Rail Laser Cutting Machine?

Send material type, thickness range, part drawings, required tolerance, daily output target, workshop layout, voltage requirement, and any existing process photos or videos. PREF Group can use this information to recommend a practical configuration.

Can PREF Group customize the Ground Rail Laser Cutting Machine?

Yes. The final machine can be discussed according to working size, capacity, controller preference, safety system, tooling, automation, voltage, and shipping requirements.

Are the listed parameters final order specifications?

The parameter tables are used for model selection and comparison. Final order specifications should be confirmed with PREF Group before quotation, production, or publishing a final datasheet.

How do I know if this product is the right machine category?

Start from the part drawing and the production bottleneck. If the main issue is bending, cutting, welding, grooving, punching, or spare parts compatibility, PREF Group can compare the related product category and recommend the better fit.
