Tandem Press Brake Machine | Long-Length Bending System

Configuration Details

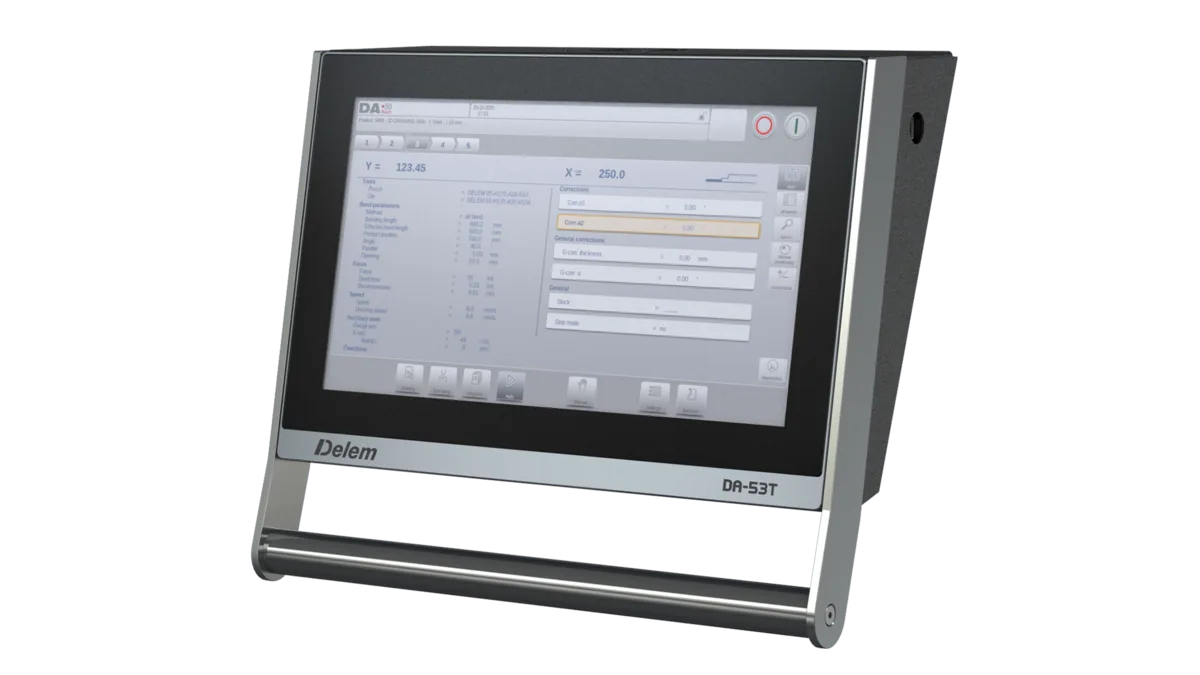

CNC Controller

The CNC controller is the central control unit of the tandem press brake system. It manages bending programs, axis movement, backgauge positioning, crowning compensation, safety signals, and synchronized operation between machines.

High-quality controller options such as Delem, ESA, and Cybelec can support efficient bending-cycle calculation, 2D or 3D graphic programming, angle correction, material data management, and multi-axis control. For tandem bending, the controller must also coordinate both press brakes so long workpieces can be bent with stable timing and repeatable accuracy.

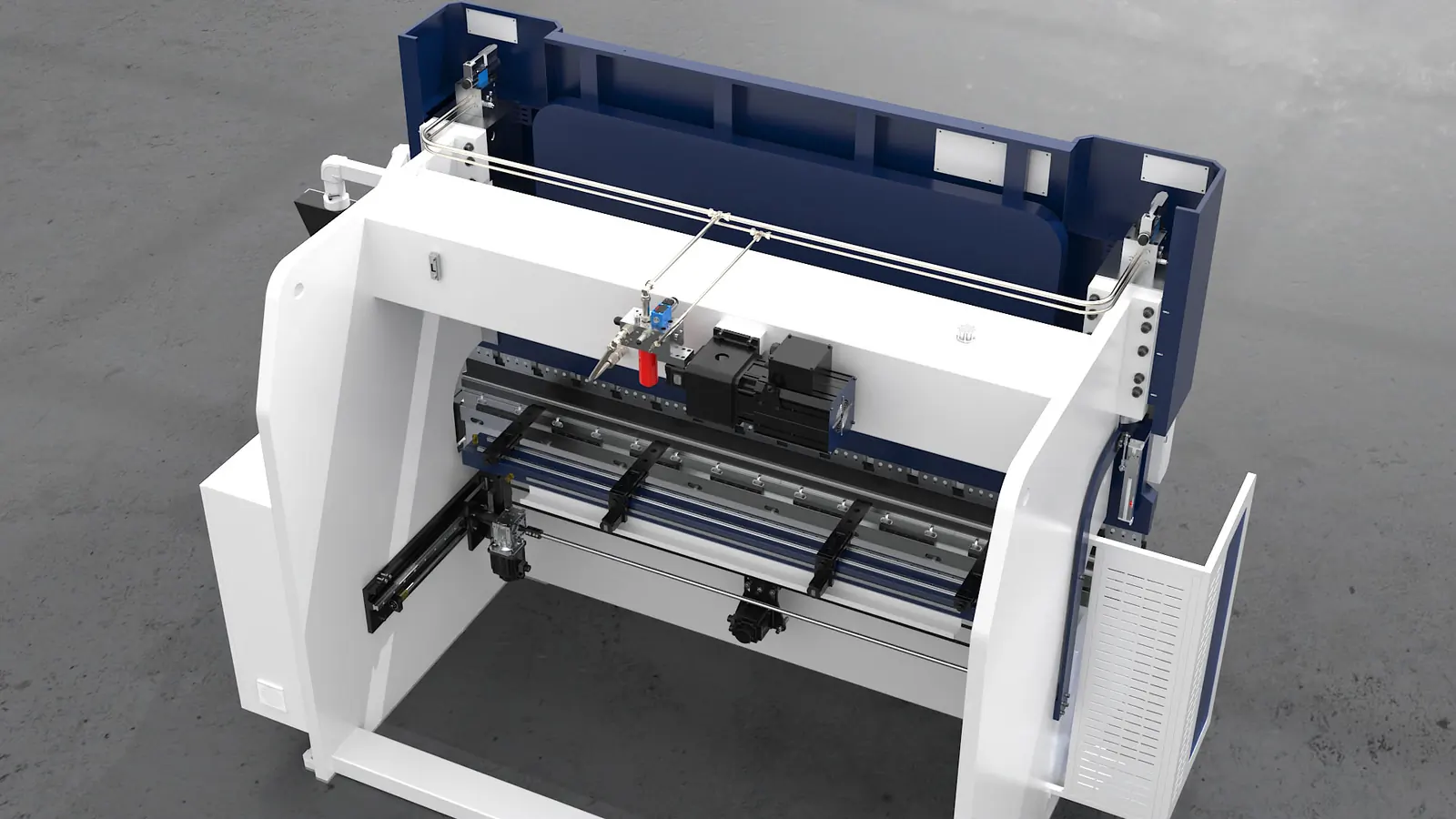

Hydraulic System

The hydraulic system uses electro-hydraulic servo synchronization to provide stable bending force and accurate ram movement. It supports strong anti-eccentric-load capability, high synchronization accuracy, and reliable pressure control during heavy or long-sheet bending.

System pressure can be adjusted according to practical bending requirements. For tandem applications, hydraulic stability is especially important because both machines must maintain consistent force output and ram position during the same bending cycle.

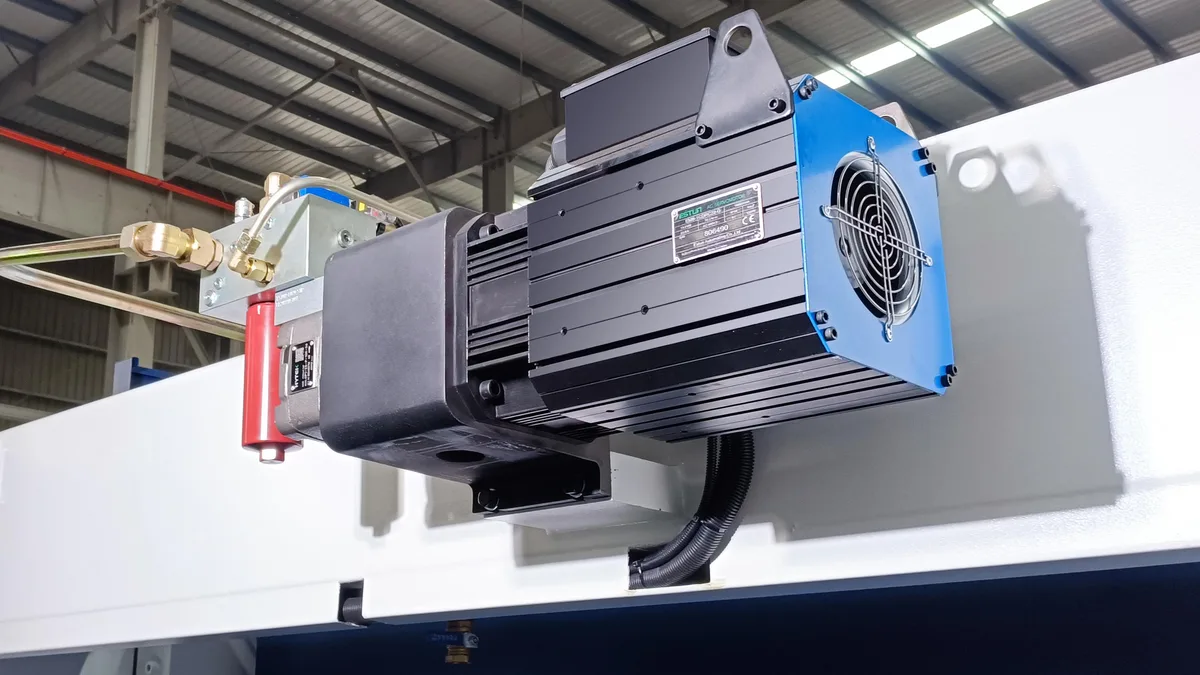

Motor

Servo motors provide high dynamic response, accurate movement control, and improved energy efficiency compared with traditional drive solutions. They help reduce operating cost while improving positioning performance and production efficiency.

Depending on configuration, servo motors can be used for key axis movement, backgauge positioning, and synchronized control. Stable servo performance helps the tandem system respond quickly to program commands while maintaining bending accuracy.

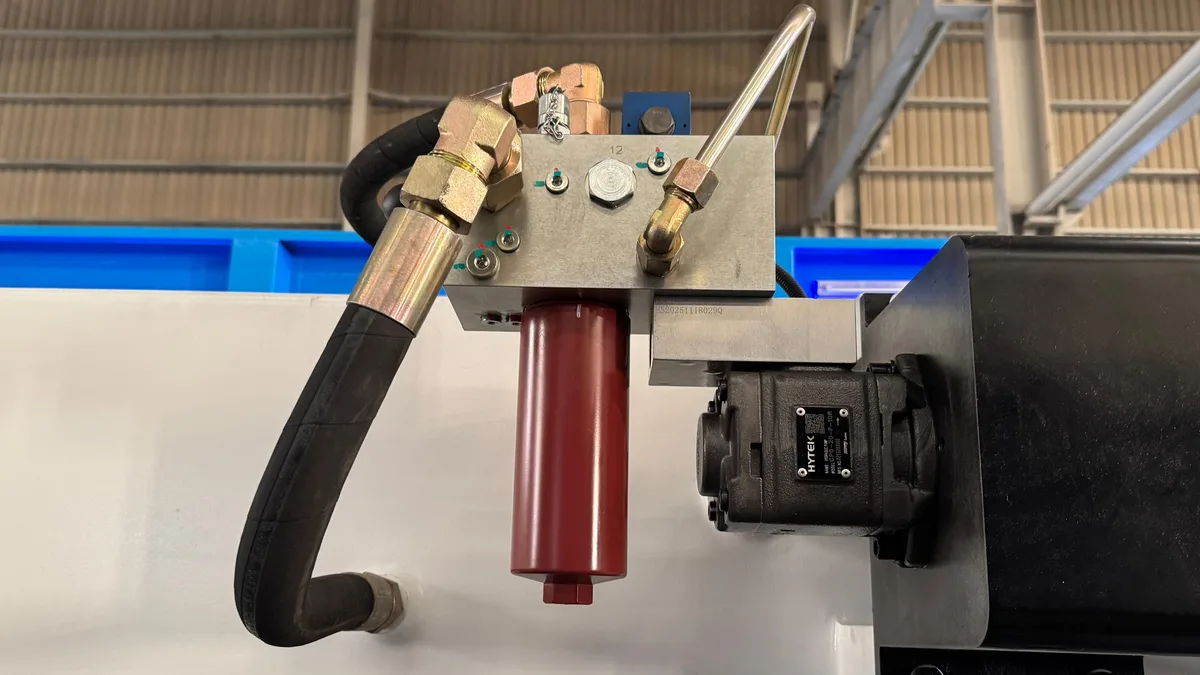

Oil Pump

The oil pump is built for stable hydraulic oil delivery and long service life. High-strength construction, internal noise reduction design, and good resistance to oil contamination help maintain reliable operation under continuous bending conditions.

For long workpieces and higher tonnage applications, stable pump performance supports consistent hydraulic pressure and reduces the risk of abnormal movement during repeated production cycles.

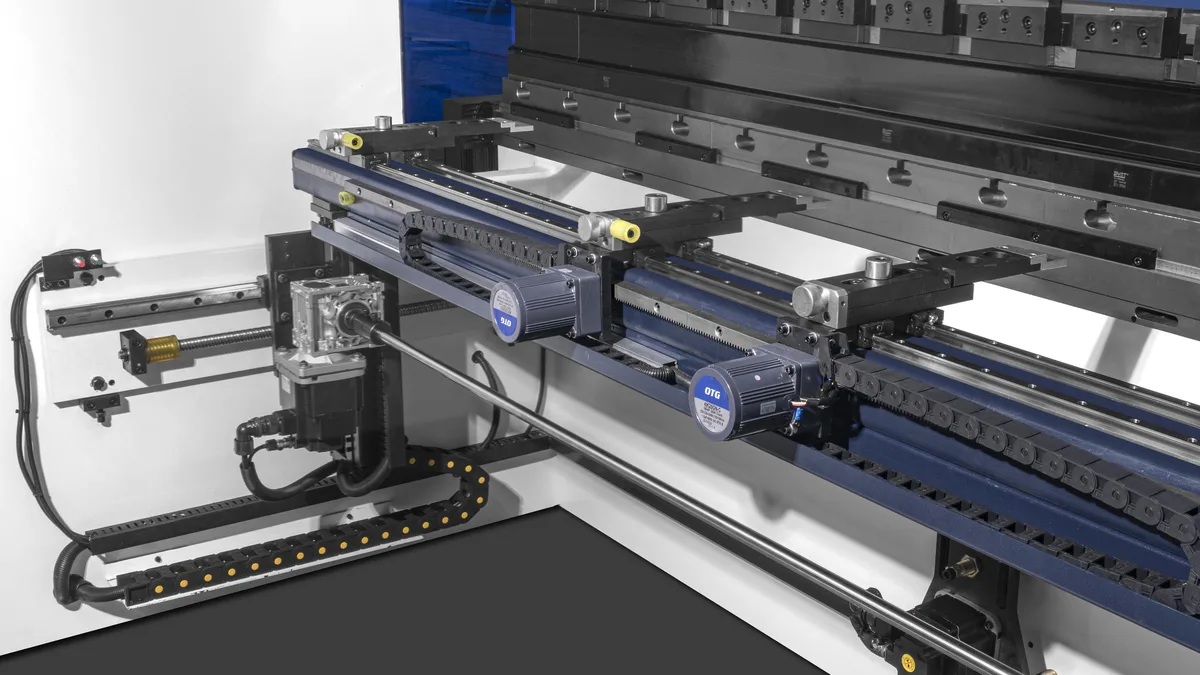

Backgauge

The backgauge system uses ball screws, linear guide rails, and servo-controlled transmission to improve positioning accuracy and repeatability. Compared with basic screw-rod structures, this configuration provides smoother movement and better long-term precision.

For tandem bending, the backgauge must support accurate sheet positioning across a longer working length. Optional multi-axis backgauge configurations can be selected according to part complexity, flange depth, and production efficiency requirements.

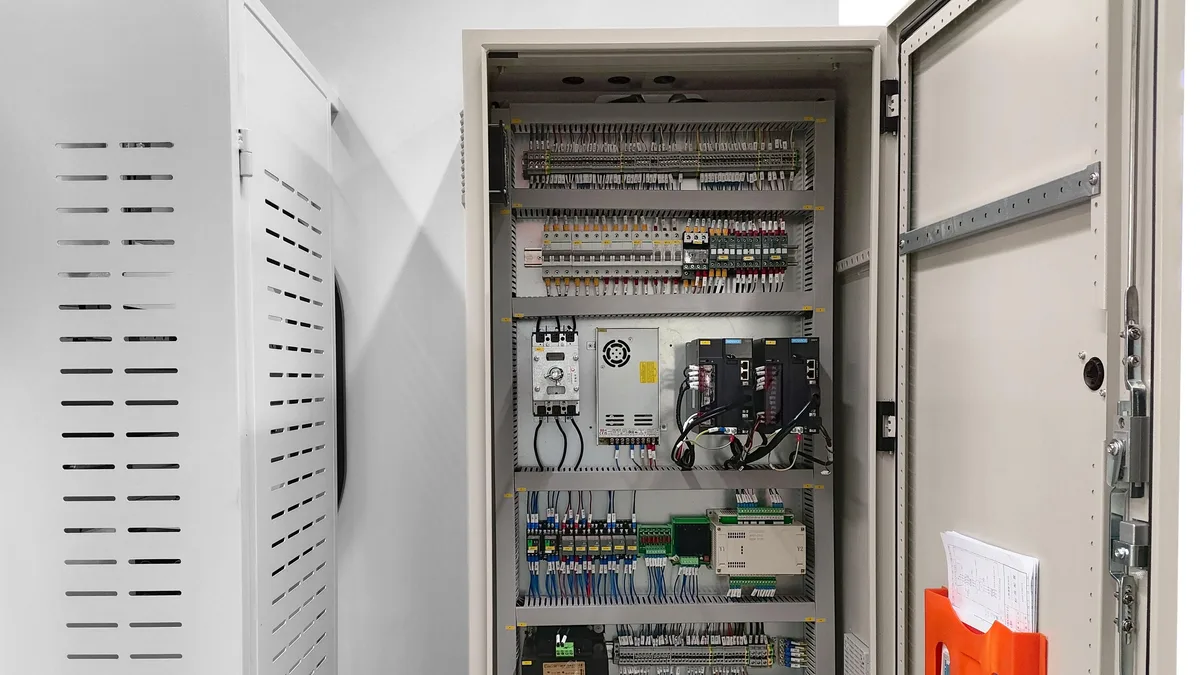

Electrical Parts

Reliable electrical components help maintain stable signal transmission, strong anti-interference performance, and safe machine operation. The electrical cabinet should be arranged for clear wiring, easy inspection, and convenient maintenance.

For tandem systems, electrical stability is more demanding because two machines need coordinated control, synchronized feedback, safety interlock, and accurate communication during each bending cycle.

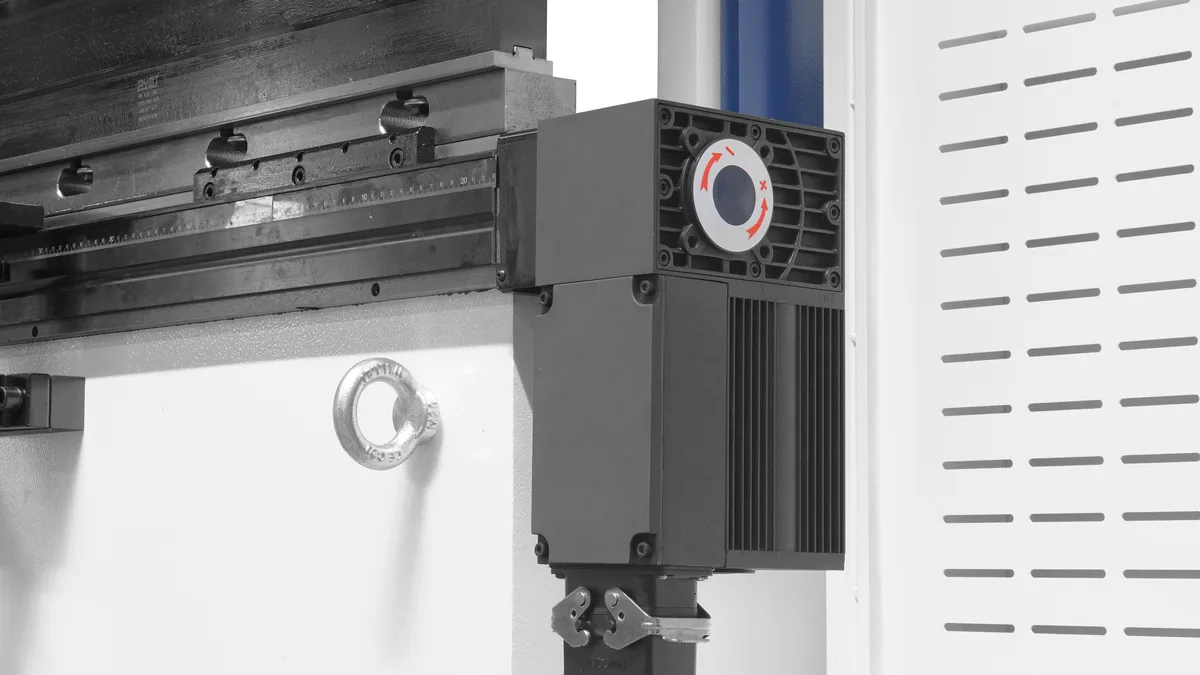

Crowning

Crowning compensation corrects ram and table deformation during bending. The system calculates compensation according to bending force, workpiece length, tooling condition, and machine deformation characteristics.

For long parts, crowning is essential for keeping the bending angle consistent from the center to both ends of the workpiece. A well-matched crowning system helps improve straightness, reduce angle deviation, and improve final part quality.

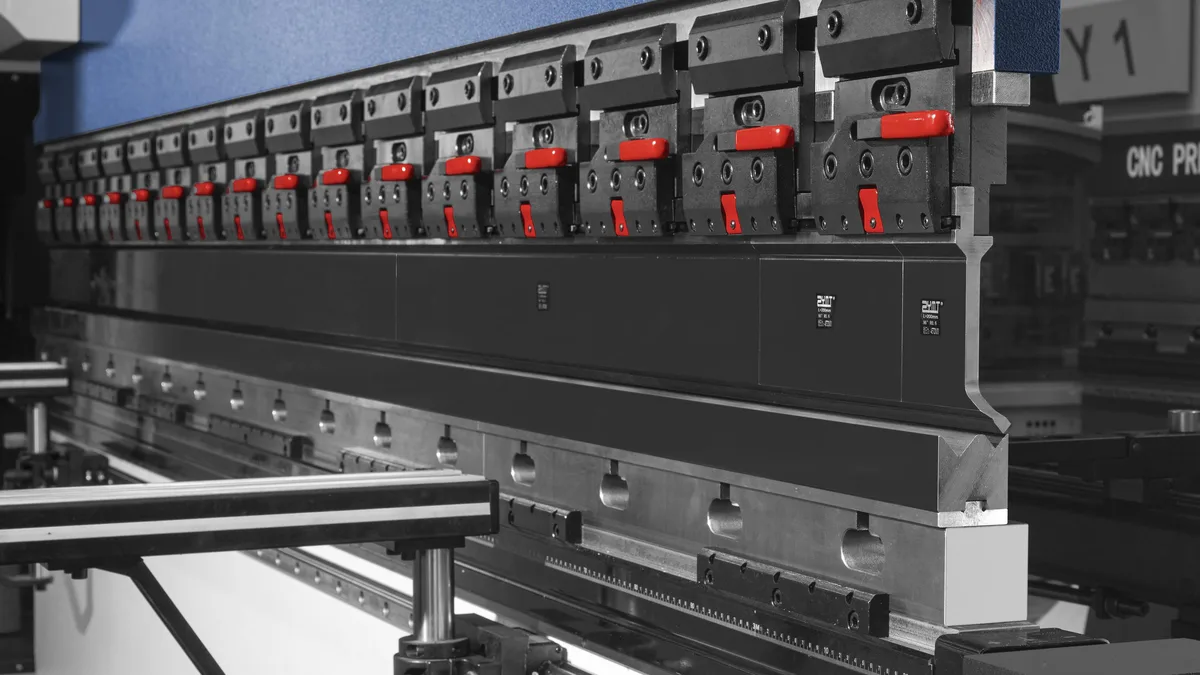

Punches and Dies

Press brake tooling determines the bending angle, inside radius, flange shape, and final forming quality. Correct punch and die selection should be based on material type, thickness, bending length, V-opening, and required part geometry.

For tandem press brakes, tooling consistency is critical. When two machines bend one long workpiece together, tooling height, segmentation, alignment, and clamping accuracy must be carefully matched to avoid step marks or angle differences.

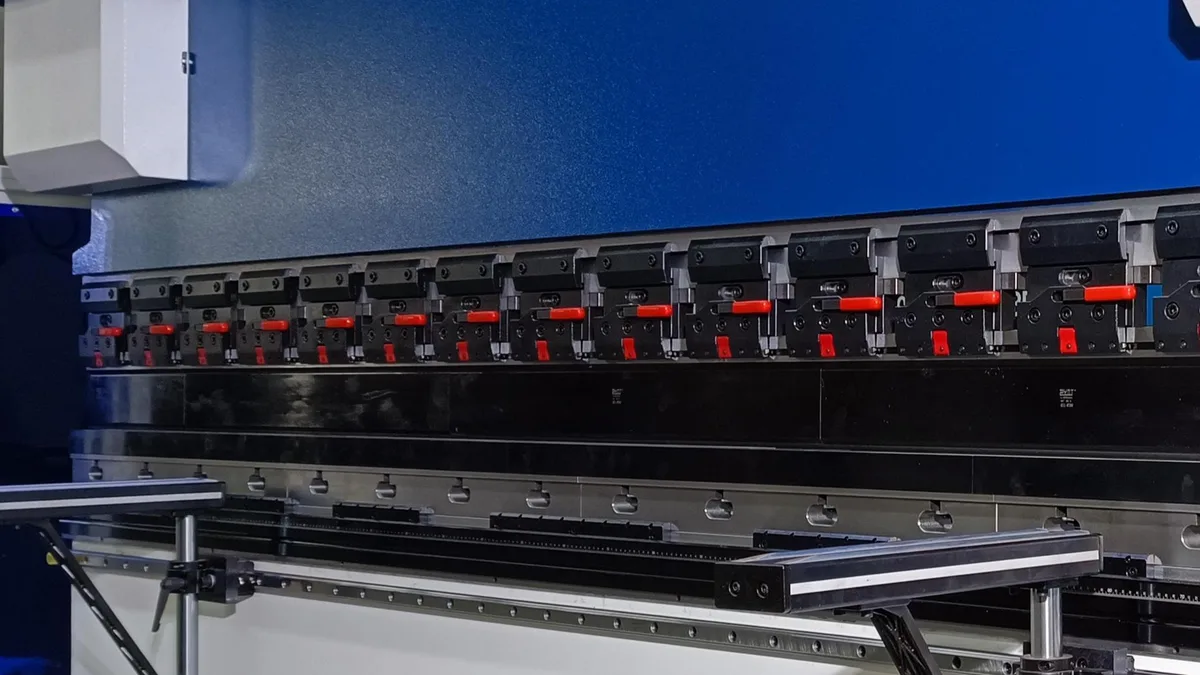

Fast Clamp

The fast clamp allows the upper punch to be replaced quickly and accurately. It reduces tool change time, improves operator efficiency, and helps keep the tooling position stable during repeated production.

For long tooling segments used in tandem bending, quick and accurate clamping is important for alignment. It helps reduce setup time and supports more consistent bending results across the complete working length.

Model Parameter Table

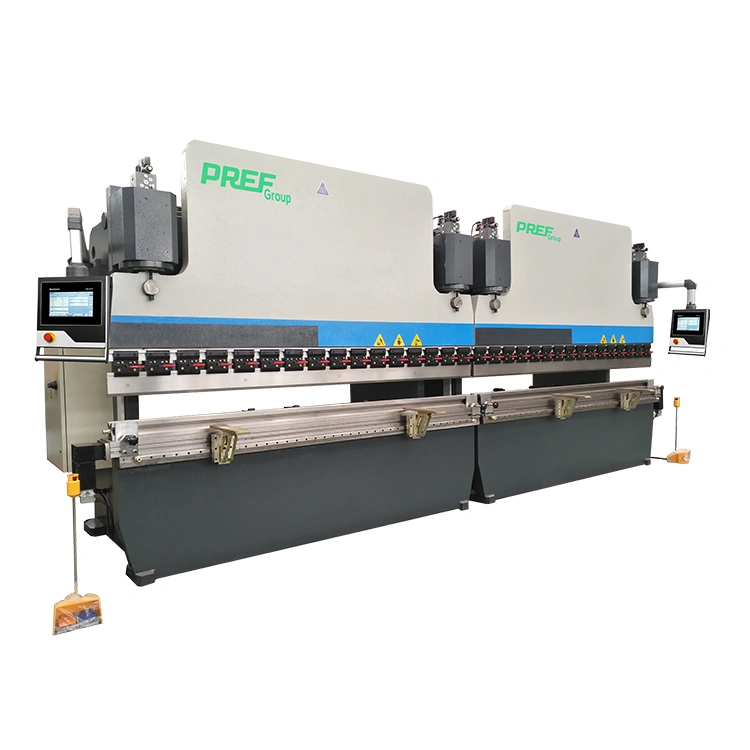

Tandem Configuration NoteA tandem press brake system uses two press brakes working together under synchronized CNC control. The parameters below are listed for one single machine. When two machines are linked for tandem bending, the effective bending force and bending length are combined according to the selected pair. For example, two 400T/4000 machines form an 800T/8000 tandem bending solution. Final tandem capacity depends on machine pairing, controller synchronization, tooling length, foundation layout, and the actual workpiece requirement.

Model	Capacity	Working Size	Control & Speed	Installation Size
63t/2500	Nominal Force: 630 KN Bending Length: 2500 mm	Vertical Distance: 2000 mm Throat Depth: 350 mm Stroke: 150 mm Max. Opening: 350 mm	Main Power: 5 kW Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2 Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 3100 mm Overall Width: 1500 mm Overall Height: 2300 mm Approx. Weight: 5.8 Ton
100t/3200	Nominal Force: 1000 KN Bending Length: 3200 mm	Vertical Distance: 2700 mm Throat Depth: 400 mm Stroke: 200 mm Max. Opening: 420 mm	Main Power: 8.7 kW Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2 Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 3700 mm Overall Width: 1600 mm Overall Height: 2500 mm Approx. Weight: 8.5 Ton
100t/4000	Nominal Force: 1000 KN Bending Length: 4000 mm	Vertical Distance: 3500 mm Throat Depth: 400 mm Stroke: 200 mm Max. Opening: 420 mm	Main Power: 8.7 kW Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2 Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 4500 mm Overall Width: 1600 mm Overall Height: 2500 mm Approx. Weight: 10 Ton
125T/3200	Nominal Force: 1250 KN Bending Length: 3200 mm	Vertical Distance: 2700 mm Throat Depth: 400 mm Stroke: 200 mm Max. Opening: 420 mm	Main Power: 10.8 kW Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2 Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 3700 mm Overall Width: 1600 mm Overall Height: 2500 mm Approx. Weight: 9.5 Ton
125T/4000	Nominal Force: 1250 KN Bending Length: 4000 mm	Vertical Distance: 3500 mm Throat Depth: 400 mm Stroke: 200 mm Max. Opening: 420 mm	Main Power: 10.8 kW Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2 Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 4500 mm Overall Width: 1600 mm Overall Height: 2500 mm Approx. Weight: 12.5 Ton
160T/3200	Nominal Force: 1600 KN Bending Length: 3200 mm	Vertical Distance: 2700 mm Throat Depth: 400 mm Stroke: 200 mm Max. Opening: 420 mm	Main Power: 13.2 kW Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2 Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 3700 mm Overall Width: 1650 mm Overall Height: 2600 mm Approx. Weight: 11 Ton
160T/4000	Nominal Force: 1600 KN Bending Length: 4000 mm	Vertical Distance: 3500 mm Throat Depth: 400 mm Stroke: 200 mm Max. Opening: 420 mm	Main Power: 13.2 kW Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2 Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 4500 mm Overall Width: 1650 mm Overall Height: 2600 mm Approx. Weight: 12.5 Ton
200T/3200	Nominal Force: 2000 KN Bending Length: 3200 mm	Vertical Distance: 2700 mm Throat Depth: 400 mm Stroke: 200 mm Max. Opening: 420 mm	Main Power: 13.2 kW Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2 Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 3700 mm Overall Width: 1700 mm Overall Height: 2700 mm Approx. Weight: 13.5 Ton
200T/4000	Nominal Force: 2000 KN Bending Length: 4000 mm	Vertical Distance: 3500 mm Throat Depth: 400 mm Stroke: 200 mm Max. Opening: 420 mm	Main Power: 13.2 kW Axes: 4+1+2 (Y1, Y2, X, R) + V + manual Z1/Z2 Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 4500 mm Overall Width: 1700 mm Overall Height: 2700 mm Approx. Weight: 14 Ton
250t/3200	Nominal Force: 2500 KN Bending Length: 3200 mm	Vertical Distance: 2700 mm Throat Depth: 400 mm Stroke: 200 mm Max. Opening: 420 mm	Main Power: 16.7 kW Axes: 4+1 (Y1, Y2, X, R) + V Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 3700 mm Overall Width: 1700 mm Overall Height: 2760 mm Approx. Weight: 15.5 Ton
300T/3200	Nominal Force: 3000 KN Bending Length: 3200 mm	Vertical Distance: 2700 mm Throat Depth: 400 mm Stroke: 300 mm Max. Opening: 500 mm	Main Power: 21.4 kW Axes: 4+1 (Y1, Y2, X, R) + V Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 3700 mm Overall Width: 1800 mm Overall Height: 2900 mm Approx. Weight: 16.8 Ton
400T/4000	Nominal Force: 4000 KN Bending Length: 4000 mm	Vertical Distance: 3100 mm Throat Depth: 400 mm Stroke: 300 mm Max. Opening: 600 mm	Main Power: 26.9 kW Axes: 4+1 (Y1, Y2, X, R) + V Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 4500 mm Overall Width: 2450 mm Overall Height: 3500 mm Approx. Weight: 31 Ton
500T/6000	Nominal Force: 5000 KN Bending Length: 5000 mm	Vertical Distance: 4500 mm Throat Depth: 500 mm Stroke: 300 mm Max. Opening: 600 mm	Main Power: 37 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 600 mm X-speed: 200mm/s	Overall Length: 6500 mm Overall Width: 2800 mm Overall Height: 4500 mm Approx. Weight: 50 Ton
600T/6000	Nominal Force: 6000 KN Bending Length: 6000 mm	Vertical Distance: 4900 mm Throat Depth: 500 mm Stroke: 300 mm Max. Opening: 600 mm	Main Power: 45 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 800 mm X-speed: 200mm/s	Overall Length: 6500 mm Overall Width: 2900 mm Overall Height: 5100 mm Approx. Weight: 60 Ton
800T/6000	Nominal Force: 8000 KN Bending Length: 6000 mm	Vertical Distance: 4200 mm Throat Depth: 600 mm Stroke: 400 mm Max. Opening: 800 mm	Main Power: 55 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 800 mm X-speed: 200mm/s	Overall Length: 6500 mm Overall Width: 2950 mm Overall Height: 5300 mm Approx. Weight: 90 Ton
800T/8000	Nominal Force: 8000 KN Bending Length: 8000 mm	Vertical Distance: 6200 mm Throat Depth: 600 mm Stroke: 400 mm Max. Opening: 800 mm	Main Power: 55 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 8500 mm Overall Width: 2950 mm Overall Height: 5900 mm Approx. Weight: 120 Ton
1000T/6000	Nominal Force: 10000 KN Bending Length: 6000 mm	Vertical Distance: 4200 mm Throat Depth: 600 mm Stroke: 400 mm Max. Opening: 800 mm	Main Power: 2×37 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 6500 mm Overall Width: 3000 mm Overall Height: 5600 mm Approx. Weight: 100 Ton
1000T/8000	Nominal Force: 10000 KN Bending Length: 8000 mm	Vertical Distance: 6200 mm Throat Depth: 600 mm Stroke: 400 mm Max. Opening: 800 mm	Main Power: 2×37 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 8500 mm Overall Width: 3000 mm Overall Height: 6100 mm Approx. Weight: 130 Ton
1200T/6000	Nominal Force: 12000 KN Bending Length: 6000 mm	Vertical Distance: 4200 mm Throat Depth: 600 mm Stroke: 400 mm Max. Opening: 800 mm	Main Power: 2×45 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 6500 mm Overall Width: 3100 mm Overall Height: 5850 mm Approx. Weight: 130 Ton
1200T/7000	Nominal Force: 12000 KN Bending Length: 7000 mm	Vertical Distance: 5200 mm Throat Depth: 600 mm Stroke: 400 mm Max. Opening: 800 mm	Main Power: 2×45 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 8500 mm Overall Width: 3100 mm Overall Height: 7150 mm Approx. Weight: 150 Ton
1600T/6000	Nominal Force: 16000 KN Bending Length: 6000 mm	Vertical Distance: 4200 mm Throat Depth: 600 mm Stroke: 400 mm Max. Opening: 800 mm	Main Power: 2×55 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 6500 mm Overall Width: 3300 mm Overall Height: 6500 mm Approx. Weight: 150 Ton
1600T/7000	Nominal Force: 16000 KN Bending Length: 7000 mm	Vertical Distance: 5200 mm Throat Depth: 600 mm Stroke: 400 mm Max. Opening: 800 mm	Main Power: 2×55 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 7200 mm Overall Width: 3300 mm Overall Height: 7000 mm Approx. Weight: 170 Ton
1600T/8000	Nominal Force: 16000 KN Bending Length: 8000 mm	Vertical Distance: 6200 mm Throat Depth: 600 mm Stroke: 400 mm Max. Opening: 800 mm	Main Power: 2×55 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 8500 mm Overall Width: 3300 mm Overall Height: 8000 mm Approx. Weight: 190 Ton
2000T/10000	Nominal Force: 20000 KN Bending Length: 10000 mm	Vertical Distance: 7050 mm Throat Depth: 700 mm Stroke: 500 mm Max. Opening: 900 mm	Main Power: 2×75 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 10500 mm Overall Width: 3500 mm Overall Height: 8300 mm Approx. Weight: 290 Ton
2000T/12000	Nominal Force: 20000 KN Bending Length: 12000 mm	Vertical Distance: 9050 mm Throat Depth: 700 mm Stroke: 500 mm Max. Opening: 900 mm	Main Power: 2×75 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 12500 mm Overall Width: 3500 mm Overall Height: 8300 mm Approx. Weight: 320 Ton
2000T/14000	Nominal Force: 20000 KN Bending Length: 14000 mm	Vertical Distance: 11050 mm Throat Depth: 700 mm Stroke: 500 mm Max. Opening: 900 mm	Main Power: 2×75 kW Axes: 3+1 (Y1, Y2, X) + V Compensation: Motorized X-travel: 1000 mm X-speed: 200mm/s	Overall Length: 14500 mm Overall Width: 3500 mm Overall Height: 8300 mm Approx. Weight: 350 Ton

Parameters change without notice. Final tandem model, control system, tooling length, machine pairing, safety configuration, foundation plan, and quotation data should be confirmed according to the actual order.
